Video

Video

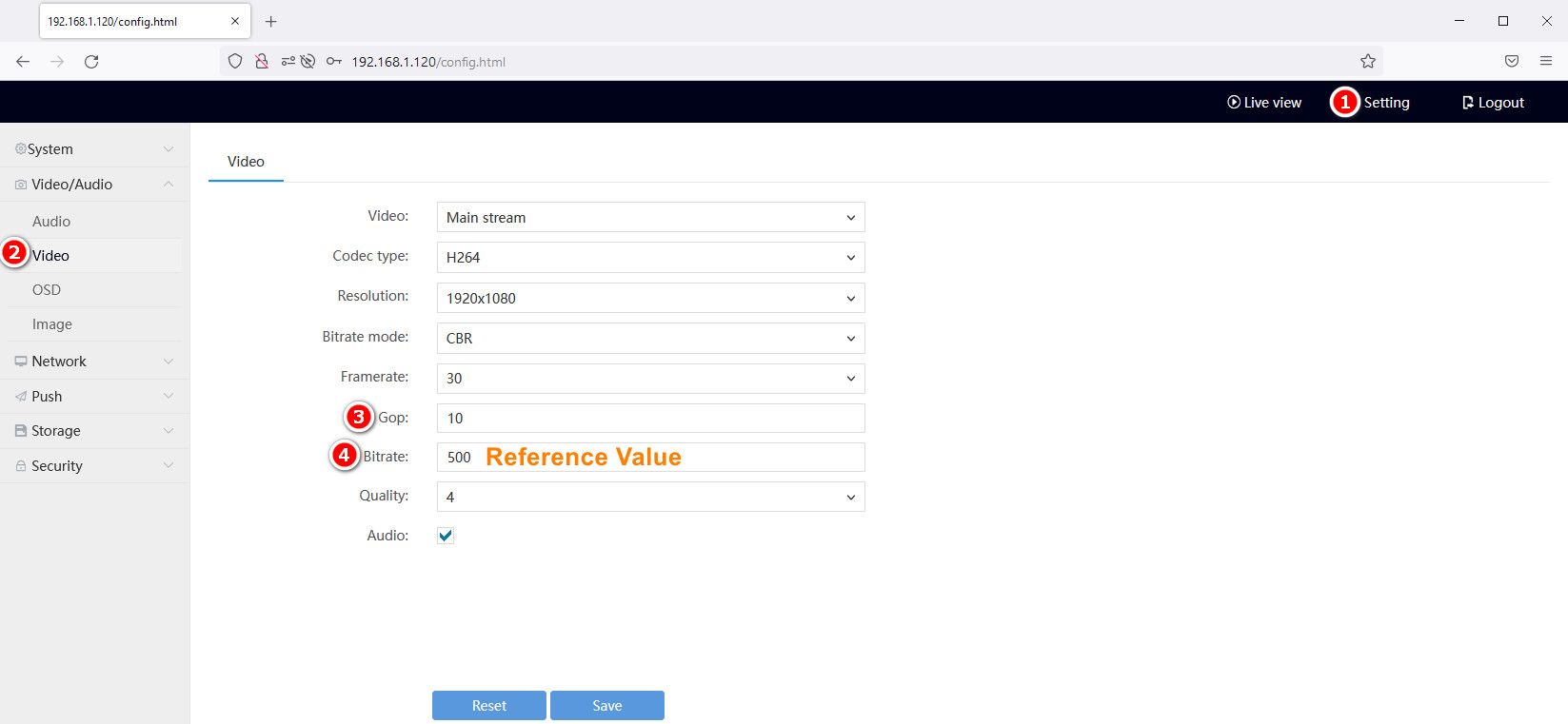

• Go to Setting->Video/Audio->Video

Item	Description
Video	Main stream/Sub stream
Codec type	H.264/H.265
Resolution	Up to 1920*1080P(Main Stream) Up to 1920*1080P(Sub Stream)
Bitrate Mode	VBR/CBR
Framerate	Up to 60fps
GOP(Key Interval)	5-200
Bitrate	64-12000Kbit/s
Quality	0-5(VBR available only)
Audio	ON/OFF

🧙‍♂️ Tips:

1. If system mode is 1*1080P@50/60, then it can be set at most 60fps.

2. Set lower Key interval(GOP) if better image quality is required.

3. It's recommended to set lower bitrate like 500Kbits/s at the very beginning if your local bandwidth is not enough.

4. If it's required to view image directly in ODM(ONVIF Device Manager), it's necessary to disable
